PDN Analyzer Description

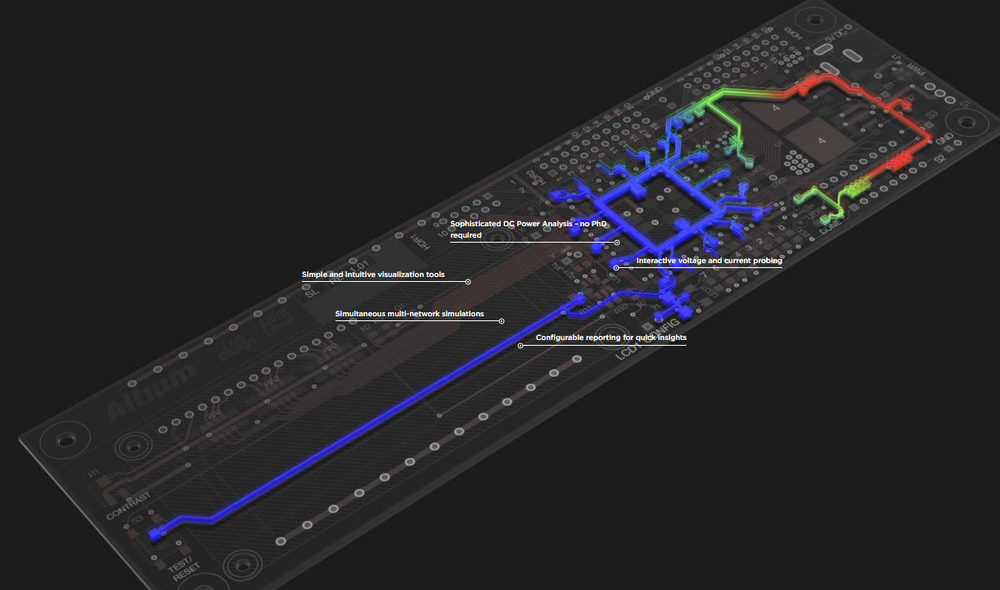

Altium's PDN Analyzer tool integrates with Altium Designer. This allows you to easily troubleshoot issues such as insufficient or excessive copper or uncontrolled voltage drops. You can also detect marginal voltage at critical power points, copper islands or peninsulas, and other issues that could be present in your PCB power system. PDN is the power system for active circuits on printed circuit boards. This includes all interconnections between the voltage regulator module, the metallization pads and die on integrated devices that are used for supply and return power. The entire length of the power delivery network must meet the IC supply voltage limits. Validating your power budget accurately means taking into account the minimum and maximum device limits, worst case voltage drops, combined return-path currents, and other factors. PDN Analyzer will show you exactly where these problems are.
