SolarDesignTool Description

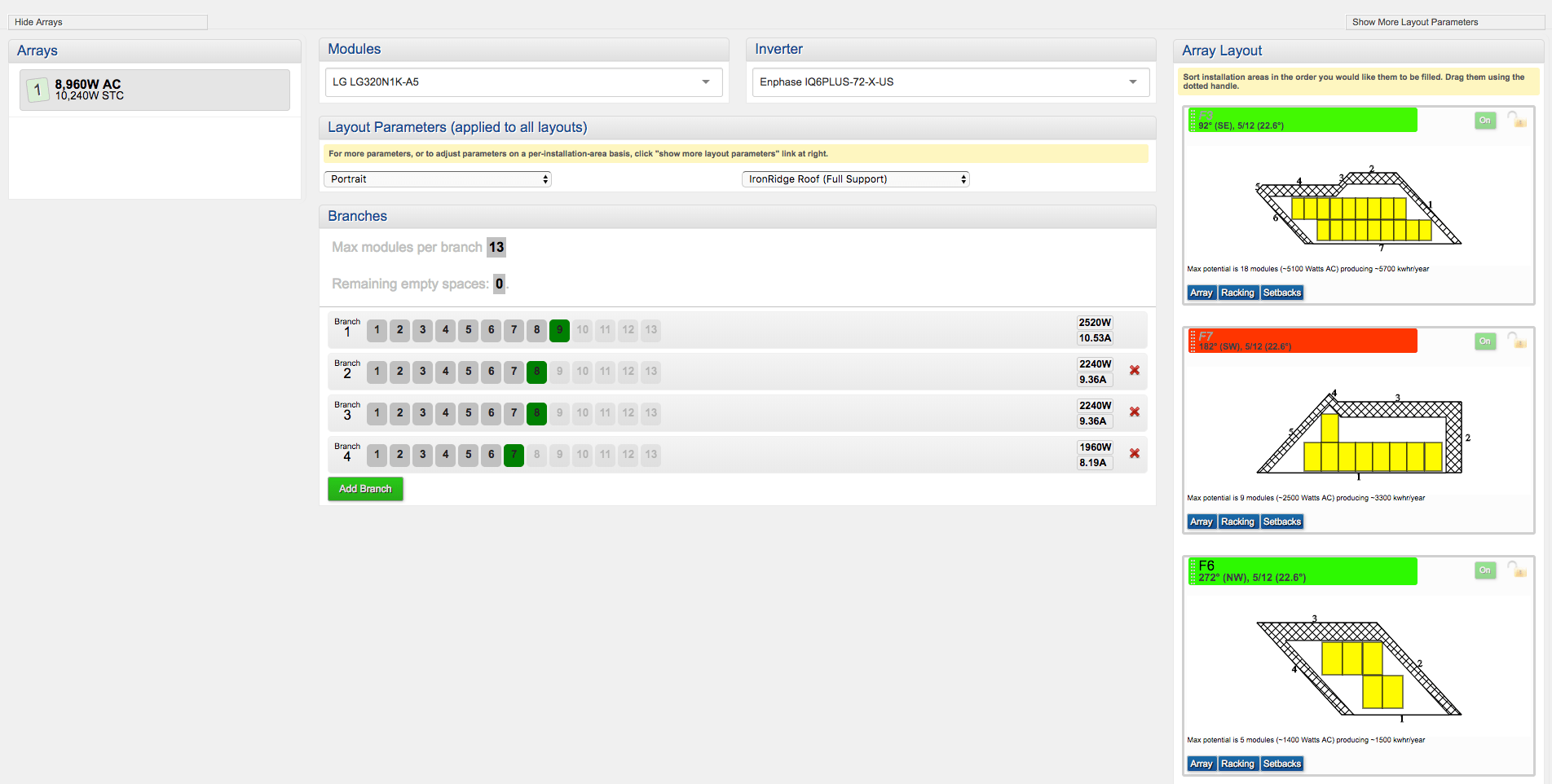

You can create a preliminary design by specifying both the inverter configurations and the layout. A quick 4-step wizard will help you transform your design into a permit-ready design. You can define the location using aerial imagery, or an imported 3D model from EagleView and RoofOrders. SolarDesignTool allows you to create a PV system design in just 15 minutes. A permit package contains the following pages: site plan, project summary, single-line diagram and PV safety labels. It also includes attachment plans for supported racking systems. Fire safety plan, datasheets, certifications, and attachment details. It takes only one button to generate a solar permit package after completing a PV system layout. A typical PV permit package for residential sloped roofs will include all the pages listed above.
