Celsius PowerDC Description

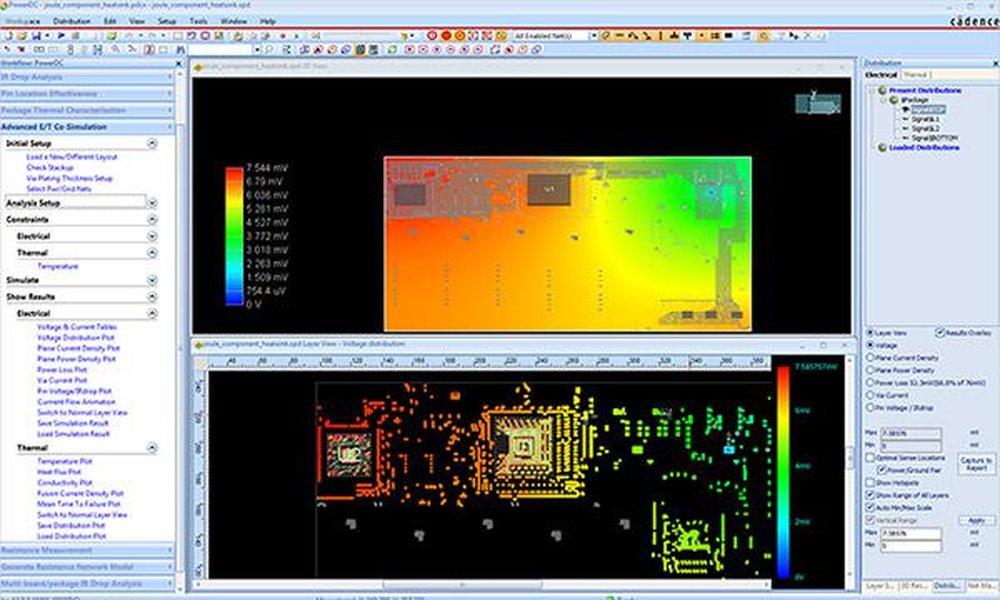

Cadence Celsius PowerDC technology offers efficient DC analysis to ensure reliable power delivery. This includes electrical/thermal simulations for maximum accuracy. The Celsius PowerDC technology quickly identifies areas of excessive IR drop and thermal hotspots to minimize the risk of failure of your design.
Highly accurate, even with complex designs that have multiple voltage domains, complex plane structures and multiple voltage domains, providing conclusive IR analysis for board and package. DC simulations can be automatically set up using PowerTree Technology (source/sink defintions) captured during the schematic stage of design. Support for multi-structures, including stacked boards, multiple die, and all popular packaging types.
Celsius PowerDC Alternatives
Altium Designer
Altium Designerยฎ offers a unified design environment backed by over 35 years of innovation and development. From schematic to PCB layout and interactive differential pair routing, to design documentation and a seamless ECAD/MCAD integration, Altium Designer empowers engineers with a single view of every aspect of the PCB design process. By accessing all design tools in one place, engineers can complete their entire design process within the same intuitive environment and deliver high-quality products quickly.
Features of Altium Designer include stackup planning, anonymous sharing, data management, 3D visualization, multi-board assembly, documentation, output configuration, and more. With the addition of Altium 365, users can choose between accessing the program online and on-premises.
Learn more
BQR
๐๐ค๐ฅ'๐ ๐๐ผ๐ณ๐๐๐ฎ๐ฟ๐ฒ ๐๐๐ถ๐๐ฒ ๐ฝ๐ฟ๐ผ๐๐ถ๐ฑ๐ฒ๐ ๐ฝ๐ฎ๐๐ฒ๐ป๐๐ฒ๐ฑ ๐ฎ๐๐๐ผ๐บ๐ฎ๐๐ฒ๐ฑ ๐ฒ๐น๐ฒ๐ฐ๐๐ฟ๐ผ๐ป๐ถ๐ฐ ๐ฑ๐ฒ๐๐ถ๐ด๐ป ๐ฎ๐ป๐ฎ๐น๐๐๐ถ๐ ๐ฎ๐ป๐ฑ ๐ผ๐ฝ๐๐ถ๐บ๐ถ๐๐ฎ๐๐ถ๐ผ๐ป ๐๐ผ๐ผ๐น๐ ๐๐ผ ๐๐๐ฟ๐ฒ๐ฎ๐บ๐น๐ถ๐ป๐ฒ ๐๐ผ๐๐ฟ ๐ฑ๐ฒ๐๐ถ๐ด๐ป๐:
๐ฆ๐๐ป๐๐ต๐ฒ๐น๐๐๐ฒ๐ฟ๐ง๐ ๐๐๐๐ ๐ฃ๐น๐๐ด๐ถ๐ป turbocharges PCB design with real-time stress analysis, derating, and thermal simulation. Its seamless integration into ECAD systems ensures optimal component selection and prevents costly errors.
๐ณ๐ถ๐ซ๐๐ฟ๐ฒ๐๐ยฎ is your reliability engineering powerhouse. With advanced FMECA, stress, and failure predictions, you can extend product lifespan and minimize downtime. Combined with Synthelyzerโข, it delivers unparalleled design optimization.
๐๐ถ๐ฟ๐ฐ๐๐ถ๐๐๐ฎ๐๐ธโขaccelerates time-to-market by detecting design flaws early in the process. Its advanced verification capabilities and stress analysis provide a robust foundation for reliable products.
๐ฎ๐ฝ๐บ๐ข๐ฝ๐๐ถ๐บ๐ถ๐๐ฒ๐ฟยฎ maximizes asset value and operational efficiency. Through LCC analysis and predictive maintenance, you'll reduce costs, optimize spare parts inventory, and ensure uninterrupted operations.
๐๐๐ฅ๐ยฎ ensures product safety and regulatory compliance. Our comprehensive
Learn more
Ansys Path FX
Ansys Path FX provides the capability to perform timing analysis with variations across an entire System on Chip (SoC) without compromising accuracy. With its distinct cell modeling, it achieves SPICE-level timing accuracy for various voltage and variation scenarios using a single library. The architecture of Path FX is fully threaded and distributed, enabling it to scale efficiently to thousands of CPUs. Furthermore, Path FX employs path-based timing analysis technology that effectively considers all significant factors influencing delay and constraints across different process, voltage, and temperature conditions. It also has the functionality to automatically detect and simulate each clock path present in your design. In the current landscape, two major hurdles in chip design include reducing power consumption through lower supply voltages and navigating the complexities associated with advanced silicon processes, particularly at 7nm and beyond. This makes tools like Ansys Path FX indispensable for modern semiconductor development.
Learn more
AWR Design Environment Platform
The Cadence AWR Design Environment Platform streamlines the development cycles of RF/microwave products through design automation, which boosts engineering efficiency and shortens turnaround times. This all-in-one platform equips engineers with sophisticated high-frequency circuit and system simulations alongside in-design electromagnetic (EM) and thermal analyses, enabling the creation of manufacturing-ready high-frequency intellectual property with exceptional accuracy and effectiveness. With a focus on enhancing productivity, the interface is both robust and user-friendly, featuring smart and customizable design workflows tailored to meet the demands of modern high-frequency semiconductor and PCB technologies. Moreover, its integrated design capture system supports a seamless front-to-back physical design process. The dynamic linking between electrical and layout design entries ensures that any components added to an electrical schematic automatically result in a corresponding synchronized physical layout, fostering a more cohesive design experience. This innovative approach not only minimizes errors but also significantly accelerates the overall design process.
Learn more
Integrations
Company Details
Company:
Cadence Design Systems
Year Founded:
1988
Headquarters:
United States
Website:
www.cadence.com
Media
