Calculix Description

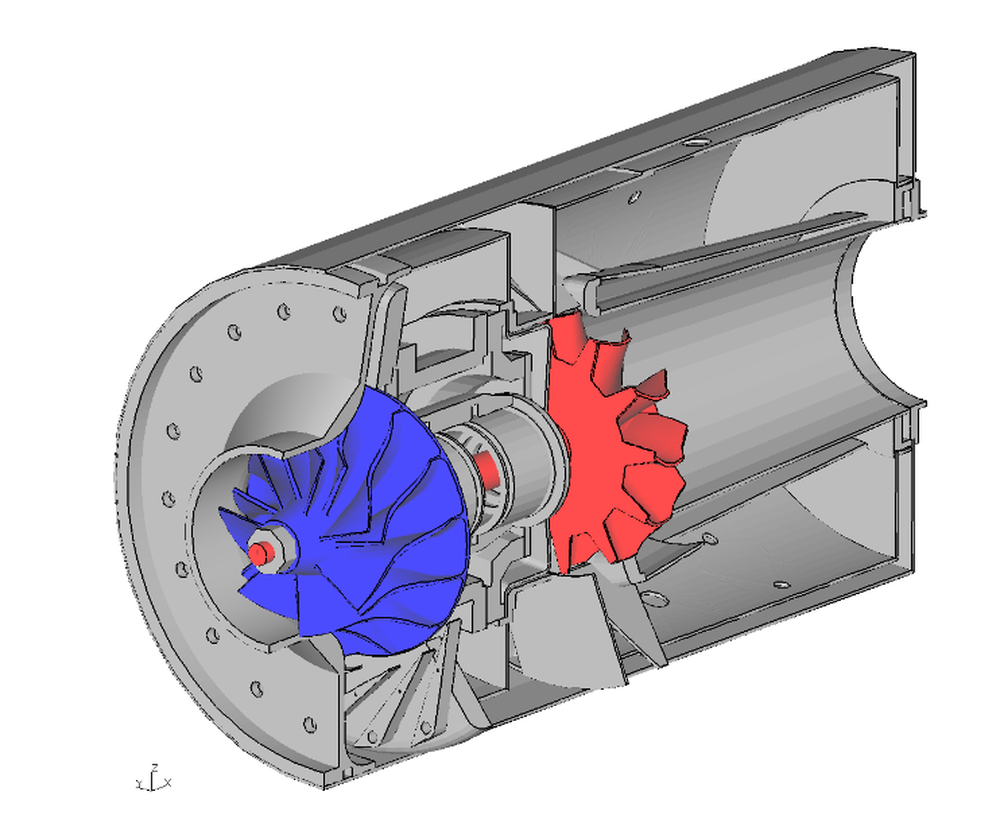

CalculiX allows users to create, analyze, and process finite element models efficiently. It features an interactive 3D pre-and post-processor that utilizes the OpenGL API for enhanced visualization. The solver within CalculiX is capable of handling both linear and non-linear calculations, offering solutions for static, dynamic, and thermal problems. Since it employs the Abaqus input format, users can leverage commercial pre-processors seamlessly. Furthermore, the pre-processor can generate mesh-related data compatible with Nastran, Abaqus, Ansys, Code-Aster, as well as free computational fluid dynamics tools such as Dolfyn, Duns, ISAAC, and OpenFOAM. A straightforward step reader is also integrated into the system. Additionally, there are options for external CAD interfaces, broadening its usability. This versatile program is designed to operate on various Unix platforms like Linux and Irix, as well as on MS Windows, making it accessible to a wide range of users.
Calculix Alternatives
ONGAA CAM
ONGAA CAM was designed specifically for WOOD CNC machining by HOMAG BIESSE HOLZHER. It allows you to create programs directly from SOLIDWORKS. You can design and apply toolpaths in SOLIDWORKS without converting or using DXF files. The files created by ONGAA CAM comply with all MPR, BPP, CIX, NCHOPS and TPACAD standards. They do not require any manual editing. There are no additional software costs.
Open Solidworks and a component to use ONGAA CAM. Next, start programming or let the wizard program for you. Click generate program, then copy the program to your CNC. Run the part program.
Learn more
Azore CFD
Azore is software for computational fluid dynamics. It analyzes fluid flow and heat transfers. CFD allows engineers and scientists to analyze a wide range of fluid mechanics problems, thermal and chemical problems numerically using a computer. Azore can simulate a wide range of fluid dynamics situations, including air, liquids, gases, and particulate-laden flow. Azore is commonly used to model the flow of liquids through a piping or evaluate water velocity profiles around submerged items. Azore can also analyze the flow of gases or air, such as simulating ambient air velocity profiles as they pass around buildings, or investigating the flow, heat transfer, and mechanical equipment inside a room. Azore CFD is able to simulate virtually any incompressible fluid flow model. This includes problems involving conjugate heat transfer, species transport, and steady-state or transient fluid flows.
Learn more
nCode DesignLife
nCode DesignLife serves as a proactive design tool that pinpoints essential areas and estimates realistic fatigue lifespans based on top finite element (FE) analysis results applicable to both metals and composites. This innovative tool empowers design engineers to enhance their approach beyond basic stress assessments, enabling them to simulate real-world loading scenarios and thereby mitigate the risks of both under-design and over-design in their products, which can lead to expensive modifications later on. Additionally, the software offers features like virtual shaker testing, fatigue analysis for welds, vibration fatigue assessments, crack growth monitoring, fatigue evaluation for composites, and thermo-mechanical fatigue studies. It leverages advanced technologies for analyzing multiaxial stress, weld integrity, short-fiber composites, vibrational impacts, crack propagation, and thermal stress fatigue. With a user-friendly graphical interface, it facilitates comprehensive fatigue analysis using data from leading FEA tools such as ANSYS, Nastran, Abaqus, Altair OptiStruct, LS-Dyna, among others. Moreover, it incorporates multi-threaded and distributed processing capabilities, enabling efficient handling of large finite element models and optimizing overall usage schedules. This powerful combination of features ultimately ensures that engineers can deliver more reliable and efficient designs.
Learn more
Simcenter Nastran
Simcenter Nastran stands out as a leading finite element method (FEM) solver known for its exceptional computational performance, precision, dependability, and scalability. This comprehensive tool provides robust solutions for various applications, including linear and nonlinear structural analysis, structural dynamics, acoustics, rotor dynamics, aeroelasticity, thermal analysis, and optimization. One of the key benefits of having such a diverse array of solutions within a single solver is that it standardizes input/output file formats across all types of analyses, significantly streamlining the modeling process. Whether utilized as an independent enterprise solver or integrated within Simcenter 3D, Simcenter Nastran is instrumental for manufacturers and engineering firms across several sectors, including aerospace, automotive, electronics, heavy machinery, and medical devices. By catering to their vital engineering computing requirements, it enables these industries to deliver safe, reliable, and optimized designs while adhering to increasingly tighter design timelines. This versatility and efficiency make Simcenter Nastran an invaluable asset in the modern engineering landscape.
Learn more
Integrations
API:
Yes, Calculix has an API
No Integrations at this time
Company Details
Company:
Calculix
Website:
www.calculix.de
