CADlook Description

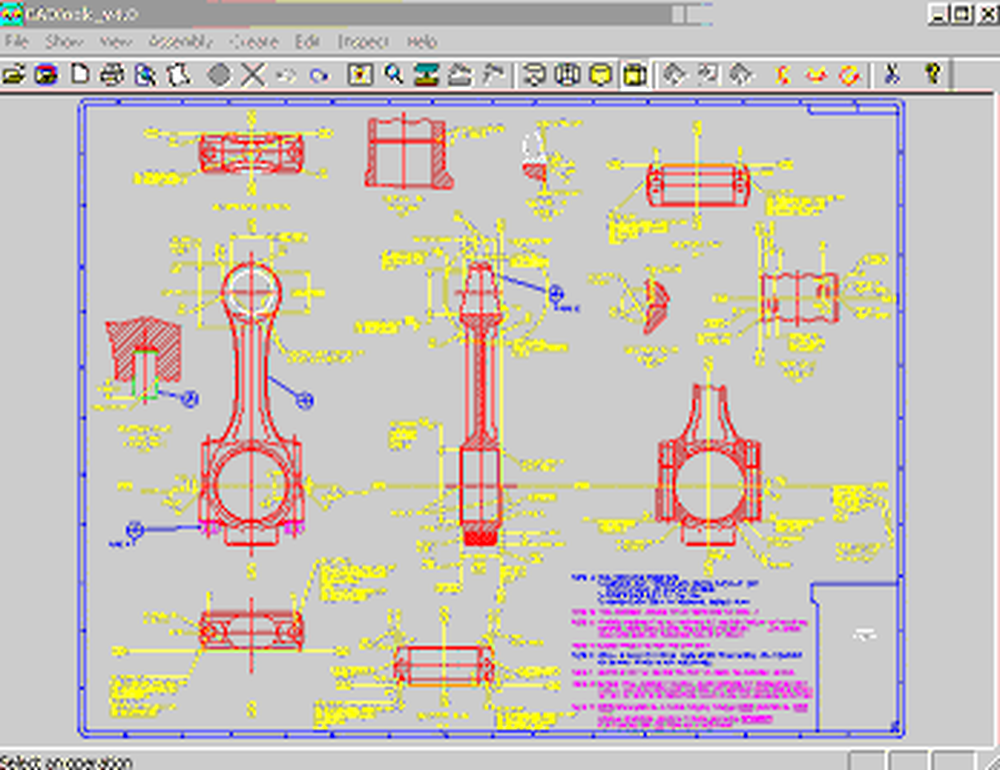

CADlook Viewer is an interactive CAD file reader and translator. It is affordable, simple to use, robust, and fast. CADlook Viewer allows users to inspect and view IGES/ STEP/ VDAFS/ SAT (Acis), ASAT (Acis Assembly),/ X_T/Parasolid/ NC G-Code/VRML/ STL files. You can measure distances, coordinates, points closest to you, areas, volumes and moments of inertia. CADlook Viewer integrates the translators. CADlookViewer can also be run in batch mode. CADlook executable can be run from within your program or from a console window. Transform trimmed surfaces into solids. Move, rotate, scale objects. Save and define custom views. Create local coordinate systems. Fill in the pockets and holes. Make a list of holes. Take out protrusions and ribs. Assembly creation and manipulation. Fast multi-core processing. CADlook is the global leader in CAD data conversion and visualisation.
CADlook Alternatives
PloView
This HP describes PloView, a series of converter and viewer products that display, edit and convert various graphic files (HP GL, HP-GL/2 and HP RTL), as well as the PloView series products. PloView allows you to view the drawings in the HPGL/Vector/image file. PloView offers the same powerful input editing functions as 2D-CAD. This makes it easy to create other drawings and divert design drawings. The standard paper size is used to determine the paper size. The paper orientation is automatically determined as Portrait or Landscape. If the printer doesn't support the paper size or the printer cannot change the paper orientation, don't select it. If the output drawing size exceeds that of the paper size, choose the maximum paper size and adjust the scale automatically so that the drawing size matches the paper size.
Learn more
EnSuite-Lite
EnSuite-Lite provides viewers for all CAD formats. You don't need CAD software or licenses in order to view any supported file type. Viewers are available for CATIA V4, CATIA V5, CATIA V6 (3dxml), Solidworks, Solid Edge, inventor, rhino and JT. EnSuite-Lite offers user-friendly tools that allow you to get accurate information from all majorCAD systems, including measure, bounding boxes, foot prints, model compare, and more. EnSuite-Lite has viewers and productivity tools. It can also export data to IGES and STEP formats. EnSuite-Lite is able to measure the geometric entities within the CAD model. It can measure distance/angle, length/radius and area/perimeter, as well as volume/weight, fillet/chamfer, and many other parameters.
Learn more
3D_Analyzer
3D CAD Viewer to review and analyze models from all major native and standard CAD formats with assemblies-structure, B-rep, tesselation, features and parameter as well as metadata, PMI and annotations. B-REP Models allow for precise measuring, cut, and annotation functions. Rapid creation of exploded views using both automatic and manual functions. 3D_Analyzer can be used to manage project tasks. It can be used as a Viewer for all major CAD files. It also offers a wide range easy-to-use and powerful 3D inspection computations, such as collision detection, collision detection, PMI, assembly-structure, collision and clearance detection, wall thickness, draft, and undercut analysis. You can share your files by exporting the CAD files to 3D-PDF format. You can also save your analysis results to 3D PDF and share them with colleagues, suppliers, or customers.
Learn more
CAD Assistant
Open CascadeCAD Assistant is an offline 3D CAD viewer/converter with an intuitive interface. It is free for personal and commercial use. The solution was originally developed to showcase the Open CASCADE Technology on mobile platforms. It has been widely used by thousands of users on desktops and mobiles around the world as a fast and useful 3D viewer. CAD Assistant puts the power of open technologies in the hands of engineers who work with 3D data. CAD Assistant is based upon open source libraries (Open CASCADE Technology Qt, FreeType and FreeImage, etc.). Open formats are available for CAD and mesh data (STEP and IFC, IGES and BREP), glTF and JT, PLY STL, OBJ and 3DM. It supports a variety of file formats, including DXF and SAT (ACIS), XT(Parasolid). Additional functionality in CAD Assistant includes the ability to view mesh models and associated data. You can read files in PLY format to view mesh.
Learn more
Pricing
Pricing Starts At:
$329
Free Trial:
Yes
Integrations
No Integrations at this time
Company Details
Company:
CADlook
Year Founded:
1998
Headquarters:
United States
Website:
www.cadlook.com
Media
Recommended Products
Start building the next generation of GenAI apps today
MongoDB Atlas is a fully-managed developer data platform built by developers, for developers. With tight integration to Google Cloud services such as Vertex AI and BigQuery, you can accelerate application deployment to stay at the forefront of AI innovation.
Product Details
Platforms
SaaS
Windows
Type of Training
Documentation
Customer Support
Phone Support
Online
CADlook Features and Options
CADlook User Reviews
